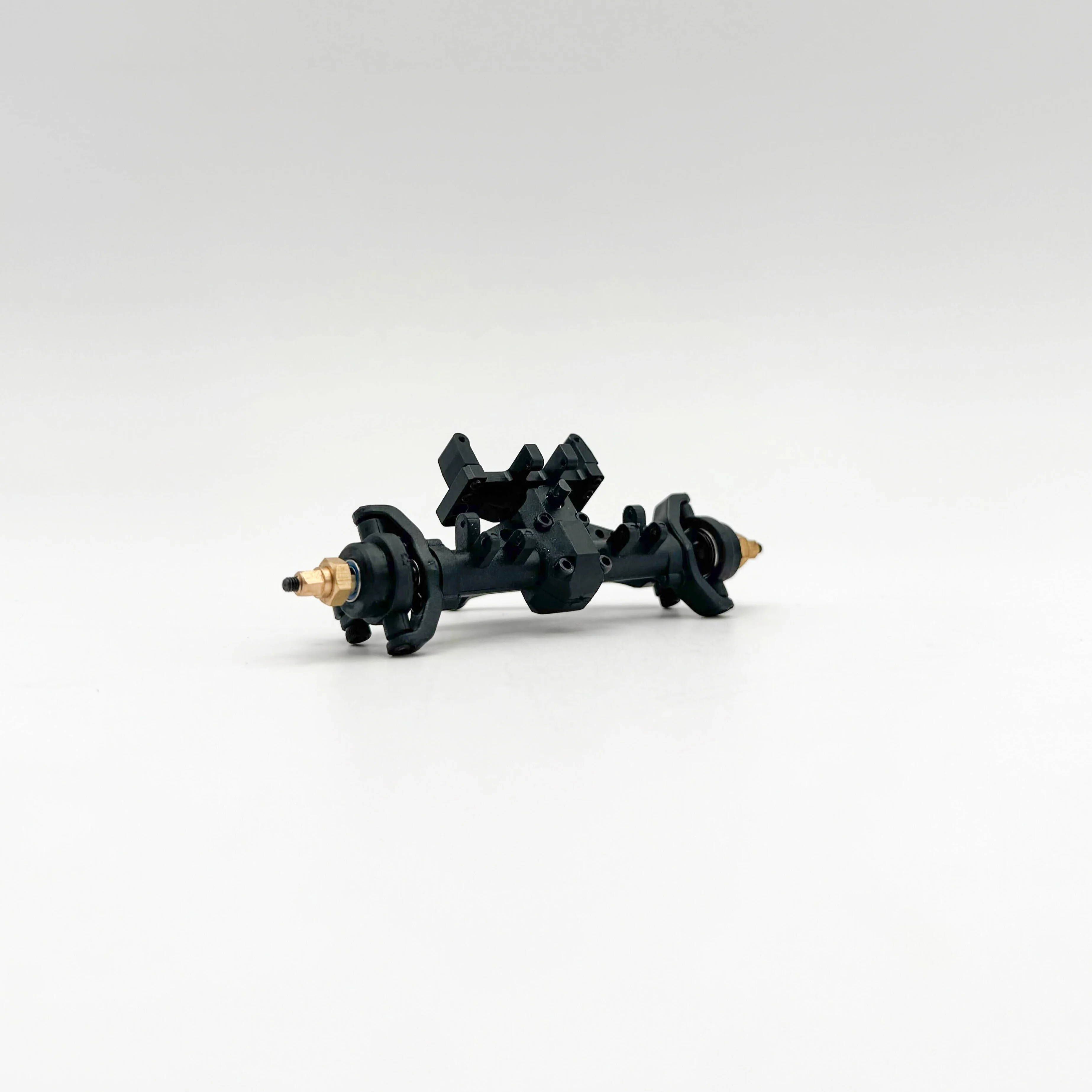

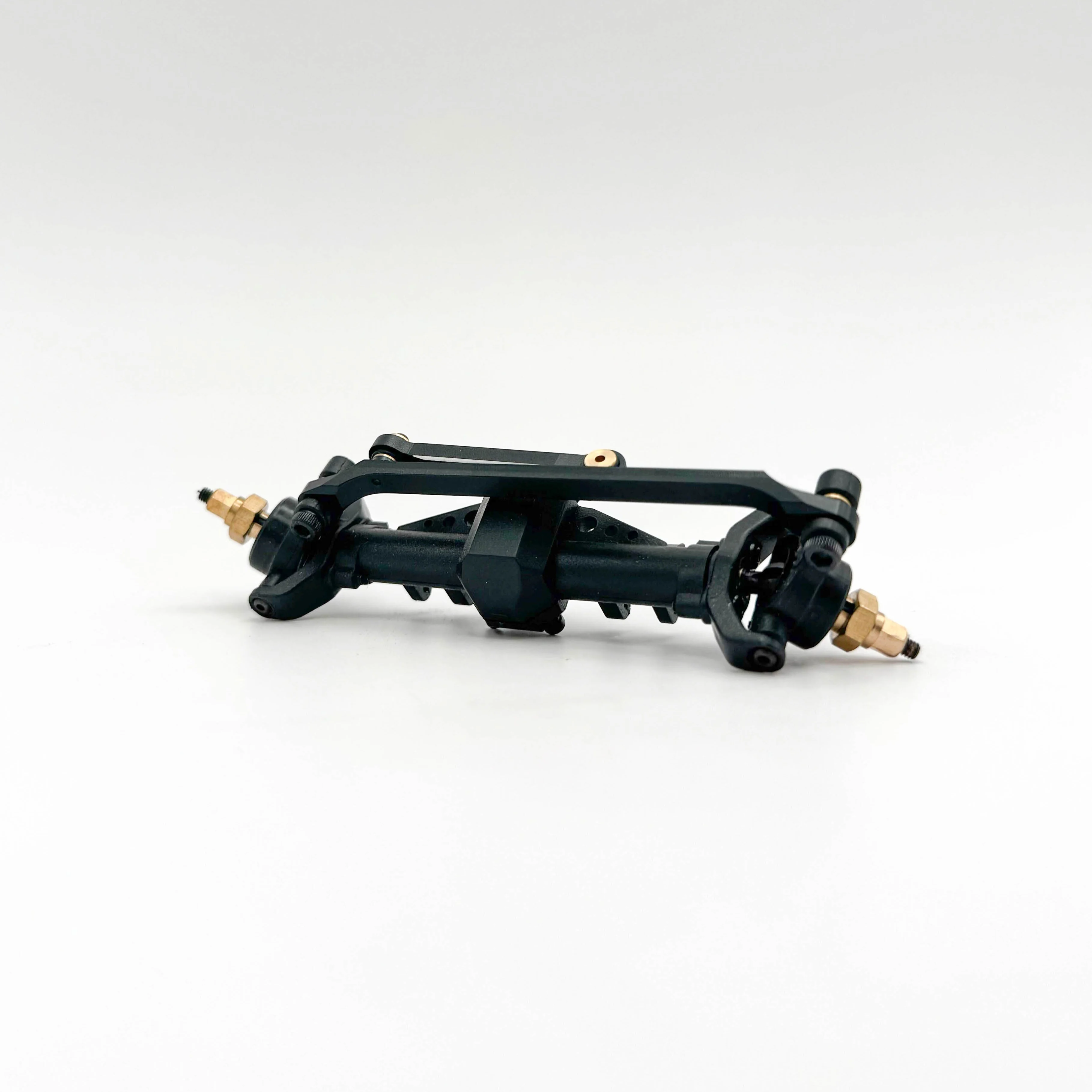

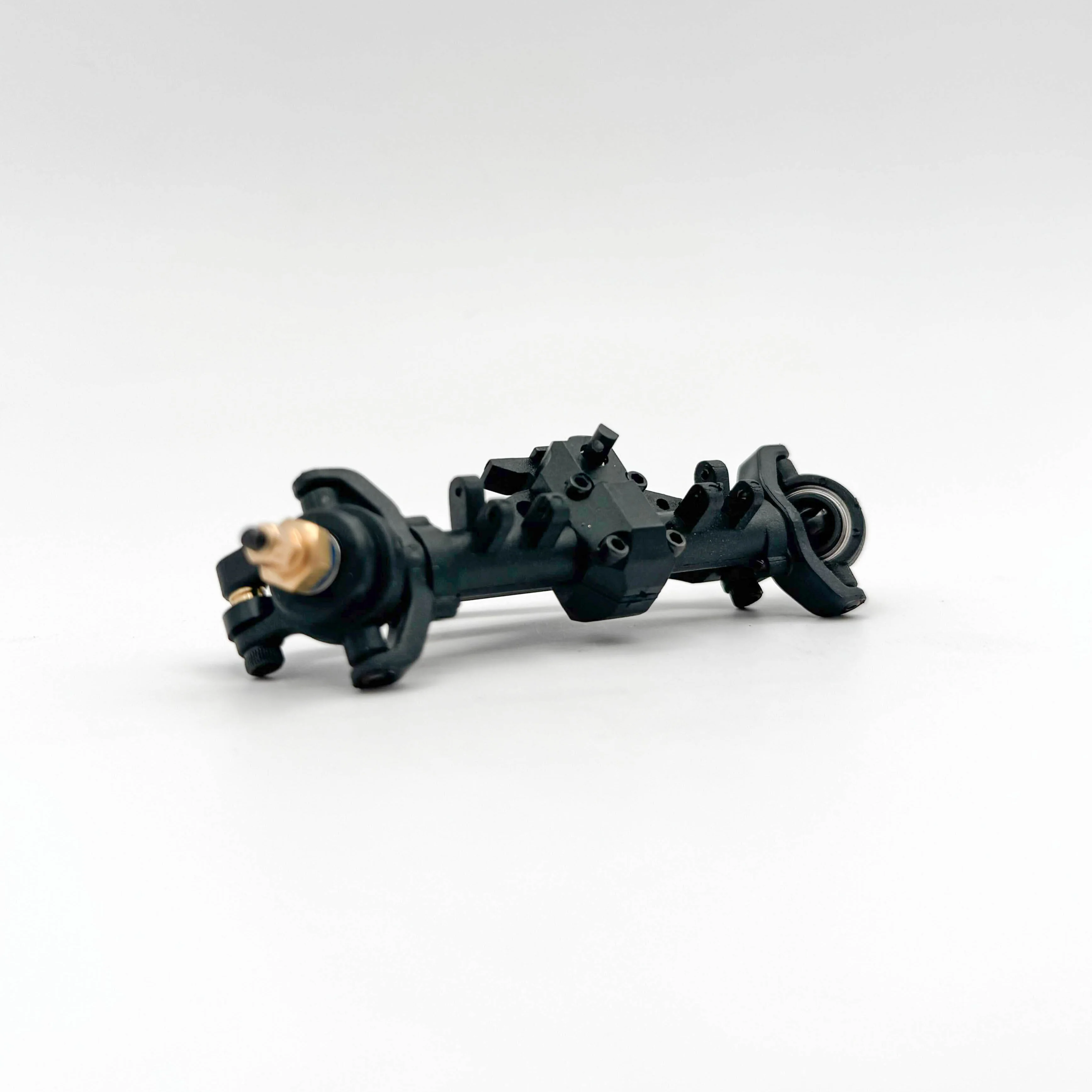

Mofo RC | X15 Front and Front Nylon Axle Set (4 Wheel Steering) (For Axial® SCX24™/AX24™)

Mofo RC presents the X15 Axles, designed as the 1-ton scale equivalent for 1/24 scale models, surpassing the typical 1/2 ton axles found elsewhere. These axles handle higher power and extreme gear ratios that standard axles cannot withstand. Compared to stock SCX24/AX24 axles, the X15 offers approximately 5.5mm extra width on each side, totaling 11mm wider. The V2 version features an underdriven setup and maintains compatibility with all standard 1.4mm SCX24/AX24 link balls and shocks, eliminating the need for 1.6mm upgrades. Please see important notes below.

Check out the steering comparison here

Features

• 15mm wider (+7.5mm per side)
• 50% Underdrive
  • Compatible with any stock style SCX24 axle gears

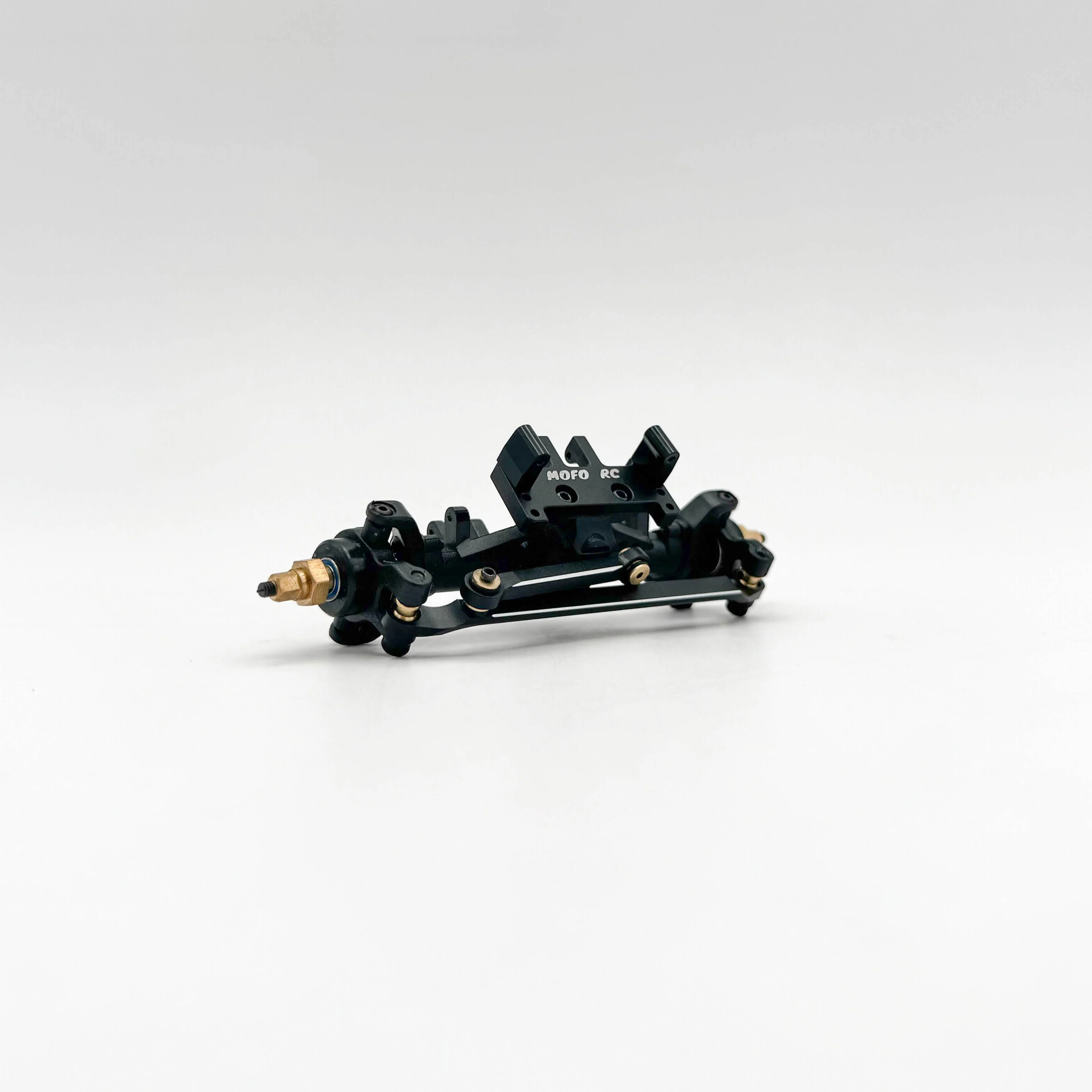

• High-Clearance Aluminum Steering Link
• High Speed Bearings

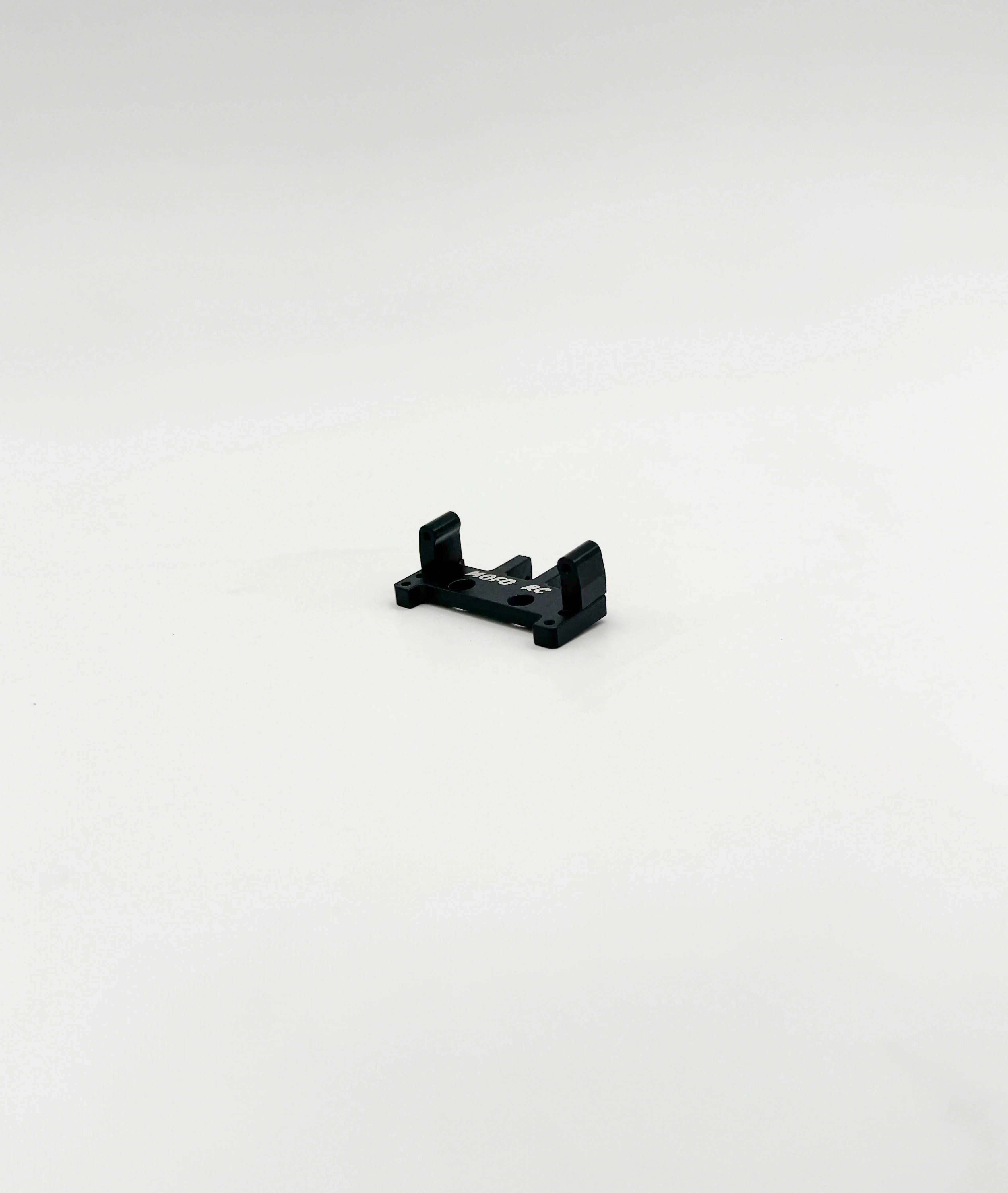

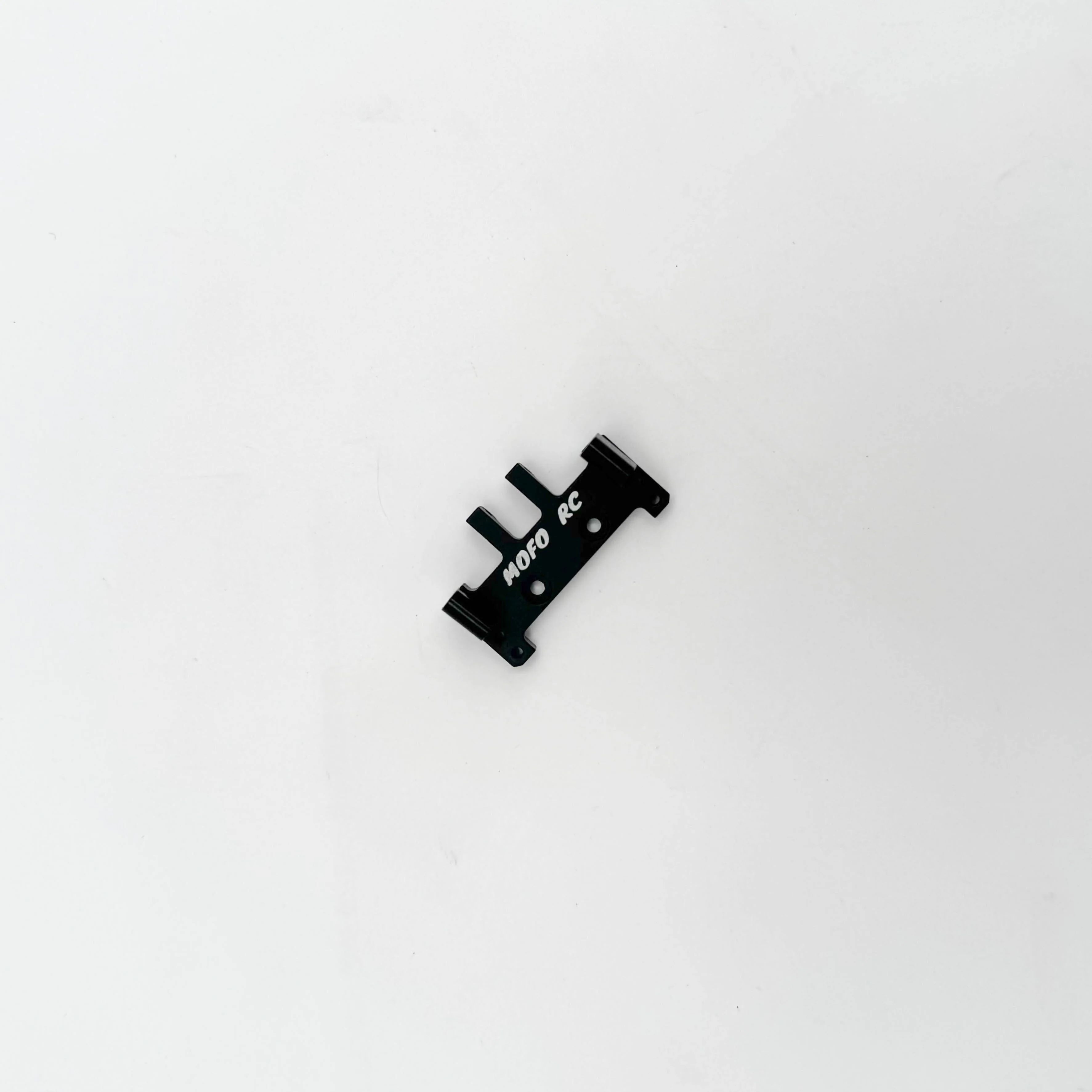

• Mofo RC Designed "BSME" (The Best Servo Mount Ever)
  • Features adjustable mounting depth of your servo, forward & back, for extra clearance
  • Mofo RC originated the adjustable servo mount design. Many have copied, but this is based off our original design that we also sell for standard SCX24 axles.
• 3x Thicker CVD Axle Shafts than stock, 2x the size of typical SCX24 axle shafts
• Slippery nylon material for limited hang-ups over rocks

• Stock shock and link mounting positions

• Rear Exit Axle Covers
  • Prevents dirt and debris from getting inside

Specifications

• 97mm Width Hex Face to Hex Face
• 2.5mm Axle Thread
  • Includes 4mm Brass Wheel Nuts
  • Scale Wheel Hub Nuts Available
• 50% Underdrive Axle Gears
  • Steel Top Worm Gear
  • Brass Ring Gear
    • Allows for a failure point in any serious bind situation and limits any "break-in"
• Weight
  • Front Axle 35g


Includes

• 2x Pre-Assembled Front Axle
  • Servo mount must be installed

• 4x Brass Wheel Nuts, Hexes, & Pins
• Optional 5mm Nylon Hex Nuts

Upgrade Parts

1. Black Brass C-Hubs
2. Black Brass Knuckles
3. Black Brass Heavy Knuckles
4. Black Brass +5mm Hex Extenders
5. Black Brass BSME Mount
6. Black Brass Steering Link
7. Black Brass Axle Housings
8. Black Brass Rear Axle Weights
9. Black Brass Diff Cover
10. Scale Hub Wheel Nuts

Important Notes

1. The axles are shipped dry. You must disassemble and grease the differential gears thoroughly as well as the axle shafts ideally.
   1. Cow RC Udder Butter is recommended
2. To install the servo mount, begin by attaching the plate to the axle, followed by securing the included screws to support the servo upright posts. Afterward, mount your servo carefully. Proceed slowly and carefully; if the upright posts become damaged, replacement parts are readily available here
3. Blue threadlocker is recommended for the brass wheel nuts
4. The stock SCX24 link screws may be somewhat short and may not provide optimal grip. For improved performance, consider using M1.4x10mm screws for the lower links. The stock screws are sufficient for rear and front 4-link upper connections, and a M1.4x12mm screw is included for those utilizing the stock front upper Y-link.

Recommended Tools

1. 0.050" Hex Driver
2. 1.5mm Hex Driver
3. 4.0 Nut Driver
4. 5.0 Nut Driver (For optional hex nuts)
